Diffuse Correlation Spectroscopy: Same Particle, Different Wave

By Currents Editor posted 02-23-2021 12:06


By Kia Ghiassi, Department of Neurology, Missouri University, Columbia Missouri;  Jesyree Veitia, Universidad Central de Venezuela, Caracas, Venezuela; and Francisco Gomez, Department of Neurology, Missouri University, Columbia Missouri

Adequate cerebral blood flow (CBF) is a key component in ensuring optimal oxygen delivery to brain parenchyma, considered a biomarker of tisular health and function with clinical utility. CBF when combined with MAP allows for inference of cerebral autoregulation, as a measure recommended by the NCS and European Society of Intensive Care medicine.

An ideal monitoring tool would be able to accurately detect local CBF changes in real time and monitor over long periods of time, as well as to provide ease of use while being non-invasive.

Readers will be familiar with light spectroscopy, commonly utilized in pulse oximeters. As the light absorbency of hemoglobin and deoxyhemoglobin at specific wavelengths is known, the contained oxygen is inferable. Near InfraRed Spectroscopy (NIRS) was developed to take advantage of these properties, yielding several applications such as measurement of brain oxygenation and relative cerebral oxygen extraction. However, NIRS technology has met several hurdles such as limited validity of rSO2, contamination by ambient light or extra cerebral tissues and limited depth of penetrance.

Diffuse correlation spectroscopy

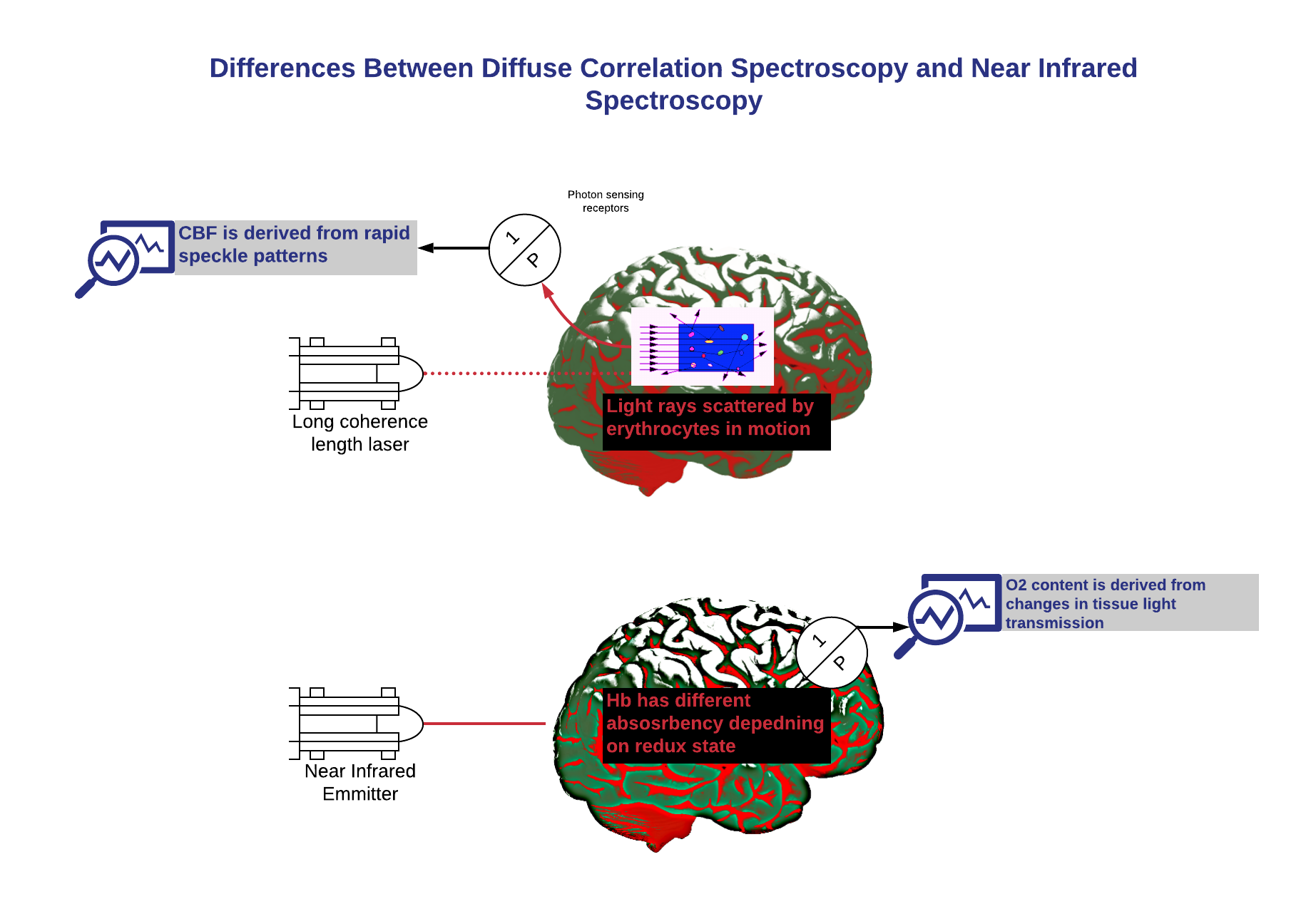

Diffuse correlation spectroscopy (DCS) utilized an entirely different assay method to that of NIRS, to determine relative blood flow as opposed to measuring tissue absorbency to a known wavelength, diffuse correlation spectroscopy (DCS) evaluates light scattering. As light penetrates cerebral tissue, it exhibits variabilities in scattering by motile erythrocytes. This scattering is derived into flow, yielding information about CBF.



DCS system uses a coherent waveform laser delivered through tissue via an optical fiber. Photon samples are gathered again via optic fiber. Detectors compose count photons, and the temporal intensity autocorrelation function is derived as discussed above.

Besides providing information about tissue blood flow, oxygenation and metabolism can be calculated through hybrid NIRS-DCS systems. Newer devices are more portable and more easily used at the bedside. Additionally, varieties of probe types are also available depending on the depth and type of tissue. DCS carries several advantages over NIRS. It can allow for better penetration up to 1.5 cm while allowing for higher temporal resolution, and potentially improved signal to noise ratio. While some modalities of NIRS allow for a flow derivation, these modalities are also limited.

Applications

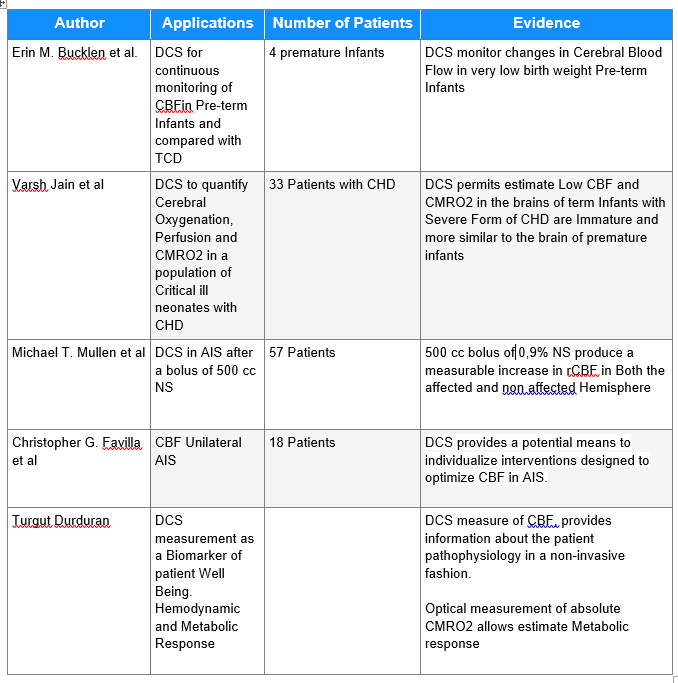

DCS has been in use for some time in neonates with congenital heart defects or preterm birth via the BabyLux device. More recently, Neurocritical Care Units have started to employ DCS. Cerebral blood flow measurements obtained via DCS were validated against Xenon-CT in an adult population with either subarachnoid hemorrhage, traumatic brain injury, or ischemic stroke.  Additionally, DCS has been used to monitor blood flow in brain tissue and tumors to the extent of monitoring CBF before and after therapies for stroke and traumatic brain injury. In these studies, DCS was found to have appropriate correlation with computer simulation.

Device

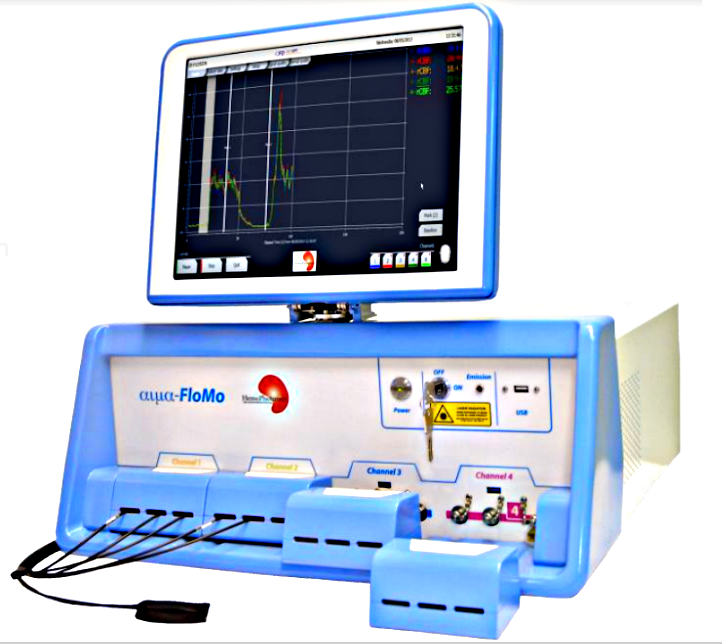

The Neuro-Monitor FloMo by Hemophotonics is a new device employing the above phenomena and is now commercially available. A fiber optic sensor is placed on the patient’s forehead whereby the laser is applied and samples are detected via a sensor placed at a set distance.  Its light wavelength is 785 nm (IR is 700nm). Single channel’s blood flow and the average are displayed on the interface in real time. It can be used with NIRS-diffuse optical spectroscopy (DOS) thus deriving CBF and O2 content.

Future Directions

The combination of NIRS and Diffuse Correlation Spectroscopy, offers a new noninvasive alternative in multimodality monitoring. A combined approach permits bedside real-time monitoring of CBF, oxygen extraction fraction and cerebral metabolic rate as well as derivation of neurovascular reactivity. There are currently very preliminary studies regarding DCS in the measurement of ICP that noninvasively measure of microvascular CBF permit continuous quantitative, bedside estimation of

DCS and NIRS are low cost and portable tools requiring no surgery, which can be used as a bedside monitor for several parameters .The potential of DCS and NIRS combined based on Cerebral Metabolic Rate of Oxygen extraction should be explored as an alternative of cerebral parameters such SO2. DCS can be used also for therapies at altering Cerebral Microvascular Perfusion. Additionally, monitor Cerebral Blood Flow with DCS and CMRO, SO2, AND CBF will help us understand the nature of Neurovascular response.
